Introduction
Geo-cell, a member of the geo-synthetic family has grown in prominence in recent decades. It has been widely used in areas such as piles, streets, foundations, pipelines, railroads, earth retaining walls and embankments. Recently, some studies focused on geo-cells ability to enhance the behavior of plate anchors. The three dimensional honeycomb structure of geo-cell differentiates them from the planar geo-synthetics such as geo-textiles and geo-grids. Because of the membrane mechanism of planar geo-synthetic resistance, geo-cells benefit from two additional resistant mechanisms confinement effects and load dispersion. The settlement proportion influences the mobilization of these resisting mechanisms. The confinement outcome of membrane and beam effect systems is activated with settlement and loading progress. Typically, geo-cell strengthening leads to a significant decrease in surface warp, a major development in structural integrity and a major decline in foundation failure. The majority of the knowledge available on geo-cell behavior has come from measurements of footings lying on level ground. The investigations required to study three major groups of elements influencing the activity of geo-cell fortified base: (1) physical and mechanical characteristics, (2) geometrical characteristics and (3) soil properties of the geo-cell material [1]. Because of its simplicity and cost reductions, soil reinforcements have emerged as a ground engineering solution for numerous applications. In various civil engineering practices, it has frequently been used to compensate for soil defects, most notably low structural integrity and excessive settlement. However, it is effective not just for improving fragile soil, but also for improving moderately stable soil. Reinforced soil has been utilized successfully in a wide range of civil applications, including load-bearing structures such as ground walls, foundations, and footpaths, culverts and earthen slope compensation. Soil reinforcements have undergone various changes in recent years to meet the complicated needs, both in terms of material and kind. The latest improvement is the ‘geo-cell,’ which is a honeycombing 3D confining structure made up of interconnected cells. Since its beginnings in the current period of ‘geo-synthetics,’ geo-cell has become a natural choice [2]. Because of fast population increase and a shortage of land, it is essential to develop the execution of weak foundations to bear foundations. Geo-synthetic soil reinforcement has obtained prominence in recent years because of its greater efficacy, simplicity, low cost and build rate when contrasted to further land expansion technologies. Because of the fast population increase and land scarcity, it is obligatory to get better execution of weak foundation soils in order to adequately bear foundations. Geo-synthetic soil reinforcement has lately obtained attention due to its better efficacy, low cost, ease of installation, and construction speed when compared to conventional ground development technologies. The schematic view of geo-cell reinforced foundation bed is represented in Figure 1.
Geo-cells are a relatively new addition to the geo-synthetic family, offering 3D internment towards earth and enhancing the structural integrity of squashy sub grade soils. The geo-cell idea is developed in the early 1970s by the United States Army Corps of Engineers to pick up vehicular mobility. In many geotechnical applications such as railways and foundations, retentive systems and footpaths to improve the poor soil performances. The 3 key mechanisms that lead to the enhancement of the structural integrity of the frail subsurface are the elasticity of the geo-cell layer, tension layer and confinement. The geo-cells confine the soil in three dimensions, allowing effective load shift to the foundation soils. The semi-rigid behavior of the geo-cell pockets subjected to the loading area is known as slab/beam effect. Flexural bending occurs across the geo-cell layer, straining the geo-cell walls and squeezing the built-up soil. The applied weight is transmitted to nearby cells via cell junctions, and so to the surrounding soil, by this motion. The slab effect reduces the scale of stress shifted to the sub grade. As a result, the surface load can be spread out across a broader region. Under high vertical deformations, the geo-cell reinforced soil layer is pressed to create a geometric shape. The upward reaction of the curved layer minimizes the vertical loads imparted to the foundation soil [3].

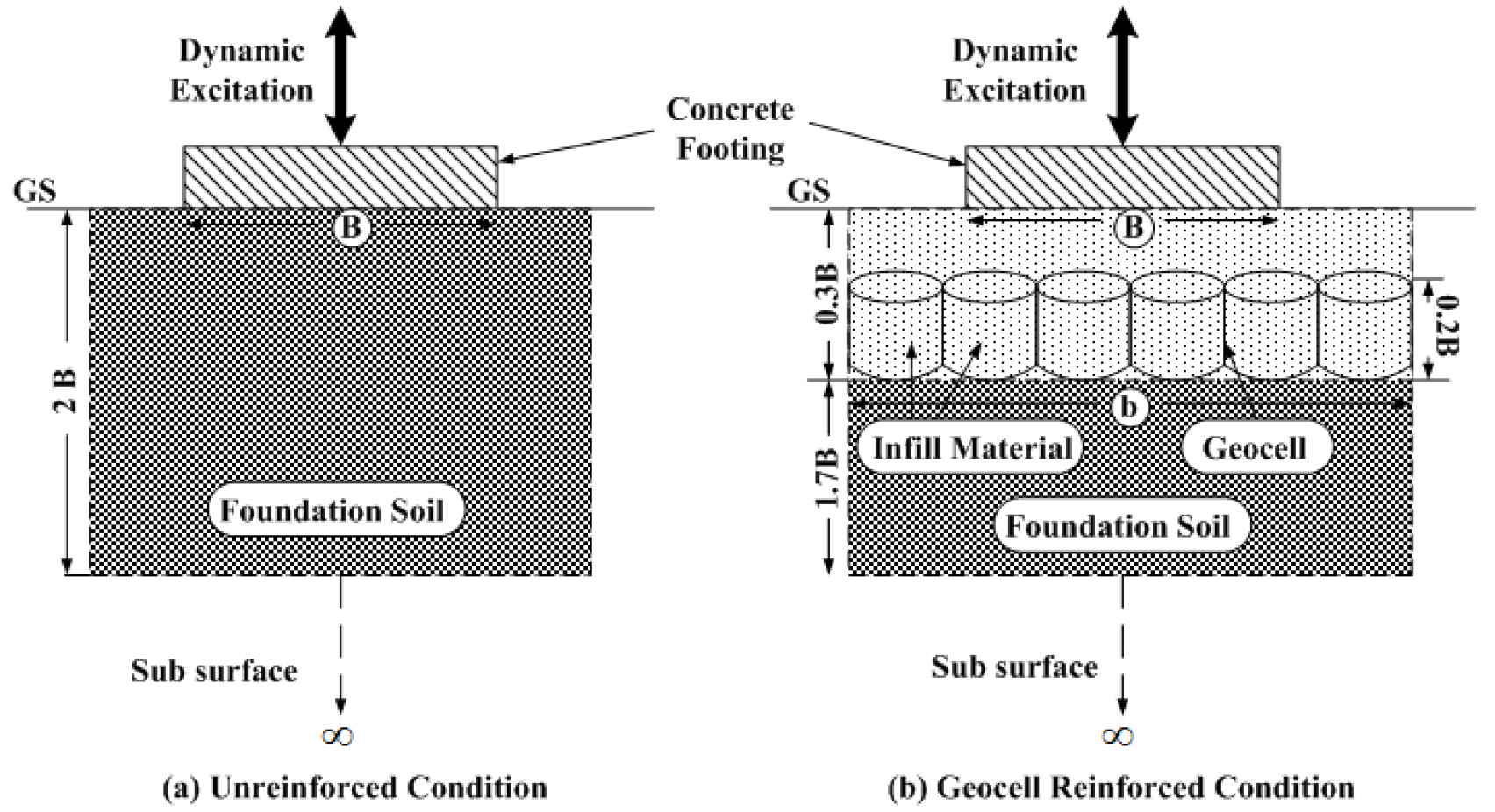

Modeling of Geo-cell
In the construction industry, geo-cells are used to decrease erosion, stabilize soil, protect channels, and offer structural reinforcement for earth retention and load support. Geo-cells were first developed in the early 1990s to increase road and bridge stability [4, 5, 6, 7]. Geo-cells are created as a long-lasting and straightforward material for stabilizing and safeguarding. Strategies are successfully maintaining compressive strength, resulting in a stronger foundation for both footpaths and built-up areas. It is a confinement device with a 3D honeycombed framework filled with compressed earth [8, 9, 10, 11]. Geo-cell classification determines aspect proportion, cell size, surface area, density, strip thickness, tensile strength, and seam strength. Furthermore, understanding advanced geo-cell possessions for instance crawl drop element, ultra violet squalor stability with permitted power intended for 50-year plan is crucial in the geotechnical design projects utilizing geo-cells [12, 13, 14, 15]. When constructing a geo-cell for severe settings and variable temperature conditions, the thermal stress confrontation, variance of heat capacity and chemical oxygen demand must all be established. Geo-cell surface qualities are critical in determining their performance in load support applications [16, 17, 18]. These materials are liable for the unevenness of the surface. Coarseness of surface causes contact friction between the material and the earth. When exposed to varied grades of dampness, heat, force or other stress, the geo-cells must maintain their unique proportions. If the geo-cell drops off their initial dimensions, confinement and compaction may suffer, resulting in structure degeneration [19, 20, 21, 22, 23].

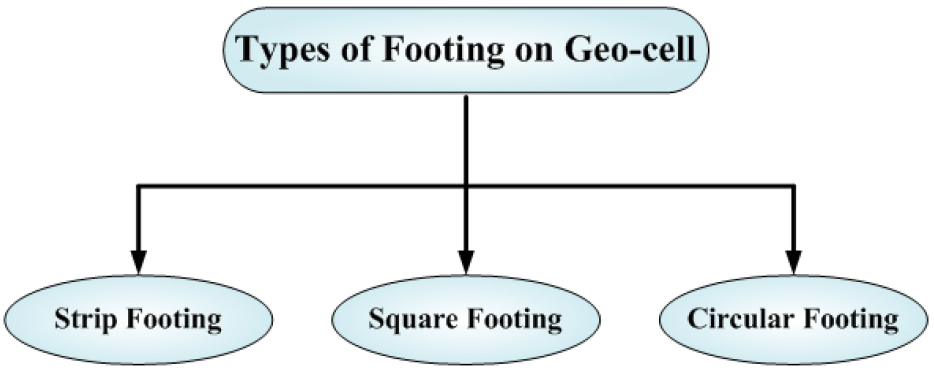

Types of Footings on Geo-cell Reinforced Grit Bed
Footings are vital in construction because they evenly distribute the weight of the structure, keeping it from sinking into the ground. It is constructed using brick or concrete masonry and acts as a base for the floor walls and columns. A footing’s principal role is to direct vertical loads to the soil. Figure 2 depicts the many forms of geo-cell footings.
Strip Footing
A strip footing is a concrete strip that runs beneath a load-bearing wall to distribute its weight across a floor space [24, 25, 26]. Strip footings are used to provide constant support for linear structures such as walls or intimately spaced rows of columns that are positioned on the cap of the foundation and situated centrally beside the span [27, 28, 29, 30]. This type of foundation is used for load-bearing walls and while the earth has a high structural integrity. Low-to medium-rise residential buildings are the perfect fit for it. In this case, a strip of concrete extends underneath the full length of the wall, spreading the load from the walls to the ground.
Performance of Strip Footing on Geo-cell
The passive resistance and frictional created on both sides of the soil geo-cell interface provides support for a geo-cell mattress. It limits soil inside its cellular structure and then planar reinforcements are briefed in [31, 32, 33].
In [34, 35] explained a sequence of small-scale replica tests is utilized to investigate the impact of three major contributing elements on the action of ground on geo-cell resistant and pre-stressed smooth slopes. These variables include the geo-cell layer’s back length, footing failure and gradient reflex angle.
A single geo-cell layer laid at a depth-to-footing-width proportion produces the lowest settling proportion and best structural integrity. It was discovered that flattening of improved slope invariably reduces structural integrity, which is particularly obvious when the slope angle is getting close to the soil internal friction angle as analyzed in [36, 37].
Square Footing
The square footing had higher bearing pressure than the circular footing; this may be owing to the more restricting impact of the square footing because the area of the square is greater than the area of the circle for the same lateral dimension.
Performance of Square Footing on Geo-cell Resistant Grit
In [38, 39], a summary of reinforced grit bed with jute geo-cell, developed with jute geo-textile, and its performance assessed in the laboratory using a square footing is provided.
Geo-cells can be used to record the uplift load-translation activities of cohesion-less soil geo-cell strengthened square low level plate secure system. The elevation factor of geo-cell resistant quadrate coat secure in cohesion less earth is preferred in the geotechnical issue analysis due to the ease of numerous material models, structural models, and the capacity to do receptive study in 3 geometrical levels studied in [40].
The ECA (Equivalent Composite Approach) was one of the first attempts to modeling geo-cells in a two-dimensional framework. The built-up material and the geo-cell are modeled as a merged soil layer with better hardness and potency qualities due to their simplicity [41].
Circular Footing
The purpose of circular footings is to sustain the weight of superstructures. The effect of soil conditions on shallow foundation carrying capacity has been investigated. Geotechnical engineers can benefit from circular foundations. Figure represents the various performance of circular footing.
Performance of Circular Footing on Grid-cell Resistant Dry Land
The lower rigid border influences the moving capability of a shallow footing. It has been restricted usage of geo-cell back up in thin soil layers to augment the freight moving ability of a solitary shallow foundation in [42, 43, 44].
Geo-cells with a chevron pattern composed of polypropylene geo-textile were utilized to support the soil bed. The characteristics evaluated in [45, 46] were the geo-cell mattress installation depth, pocket size, and geo-cell mattress height.
Characterization to Field Evaluation of Cellular Confinement Systems
The use of geo-cell reinforcements in many infrastructure projects has grown in popularity due to their numerous advantages. Because of the rising use of geo-cells in infrastructure projects, there is a large opportunity for more study to better understand the material. [47, 48, 49] Covers a wide range of topics concerning geo-cell reinforcement, from characterization to field application. Table 1 represents the characterization of geo-cell [50, 51].
Table 1.
Characterization of geo-cell

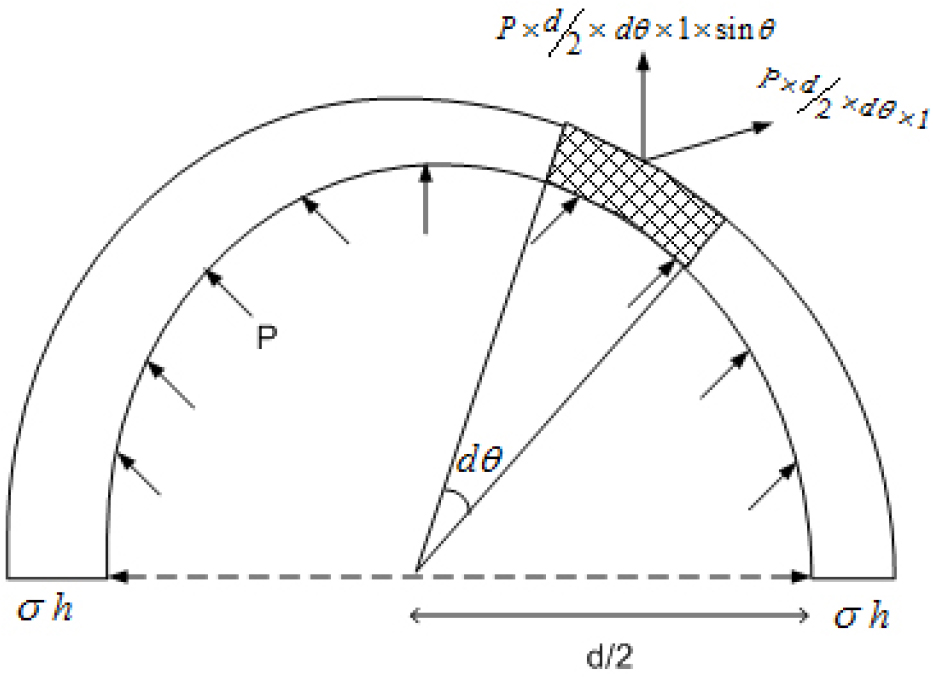

Failure Stresses and Strains
Horizontal tensions in the built-up material are mobilized as an erect load is employed to a geo-cell soil compound. The flat stress that results imposes vigorous soil stress on the matrix. Ring pressure in the matrix is triggered by vigorous soil stress on the cell wall, whereas buckling is triggered by inert ground force in the contiguous ramparts. [52, 53, 54, 55]. Figure 3 denotes the stresses on the surface of geo-cell.
Regulating Parameters of Laboratory Studies
Effect of Sub Grade Strength
The sub grade strength is measured by structural integrity [56, 57, 58]. The lateral resistance was produced as a result of the internal abrasion between the built-up material and the geo-cell wall, which improved the structural integrity.
Effect of Cyclic Loading
Because geo-cells are subjected to cyclic loads in footpath applications, cyclic load tests are critical. The influence of cyclic loadings on the elastic deformation of reinforced and pre-stressed geo-cells.
Effect of Geometry
The normal geometry of the model reservoir was taken into account, with the reservoir’s total breadth being six times that of the foothold. As a result, the breakdown hold on both faces of the foothold was restricted to 2- 2.5B.
Effect of Built-up Material
In [59, 60] revealed the geo-cell amid grit slip form materials executed superior in fixed load, whereas the geo-cell by combined built-up material performed well under energetic load.
Influencing Parameters on Analytical Studies
Effect of Confinement
Vertical settlement is lowered for cyclic and monotonic loads owing to the confining stress formed in the geo-cell [61, 62]. At low strain, dilatancy was minimized when silica was used as a filler material in the tests. At high strain, the geo-cell’s job is to restrict the earth in a synthetic condition, and breakdown occurs as a result of the geo-cell layer bursting.
Effect of Tension Membrane
The beam effect, also known as the tension membrane, is the tension induced in a curved geo-cell reinforced mattress to survive vertical displacement after severe deformation [63]. However, in order for the tensioned membrane effect to be mobilized, the concrete construction must distort drastically.
Improvement of Structural integrity
The structural integrity development feature is the non-dimensional feature that expresses structural integrity enhancement. It is the fraction of a toughened bed’s structural integrity at a known settlement to pre-stressed stock at a similar resolution.
Settlement Reduction
The decrease in settlement of a toughened stratum can be expressed in a variety of ways, including percentage reduction in settlement (PRS), cumulative permanent deformation (CPD), and so on [64]. The growing bend of the toughened layer is measured by applying ‘n’ number of cyclic loads and PRS is used to calculate the perfection of the toughened segment in terms of settlement reduction.
Traffic Benefit Proportion
The Traffic Benefit Proportion (TBR) is the proportion of increasing traffic on the resistant portion to increasing transfer on the pre-stressed segment, which corresponds to the footpath’s permitted settling, as elaborated in [65]. The various applications/contributions of geo-cell unbreakable grit bed are explained in Table 2.
Performances of Geo-cell
Geo-cells have a detachable and hive-shaped configuration that, thanks to a 3D lateral limiting mechanism, can increase the apparent cohesiveness of the soil. The geo-cell structure’s pockets are packed with coarse resources, which are subsequently compressed to form a resistant merged layer. Geo-cells have been extensively used in geotechnical engineering due to their outstanding reinforced performance and low cost [66].
Performance of Stabilizing Soft Clay under Shallow Footings
The study revealed the actual behavior of soil reinforced with geo-cells under various load circumstances. The application of geo-cell reinforcement has been shown to improve load-settlement characteristics [67].
Soft clay soils are stiff while loose and dry their stiffness when wet. The most common causes of increased moisture content in clayey soils include sewer line leakage, floods, rainfall and a lack of evaporation caused by buildings or footpaths. Soils having such qualities produce geotechnical engineering challenges such as low structural integrity, settlements, and stability issues. Pile foundations are structural components that carry and transfer superstructure weight to bearing ground at a specific depth below the ground surface [68].
Footing Performance of Reinforced Clay Bed with Coir Cell Networks
A sequence of replica shield stress tests on toughened earth and pre-stressed soil with coir geo-cells were agreed upon to better understand the soil reinforcing mechanism. The installation of coir geo-cells increased the structural integrity of the soil by 3 times, and settling in the underlying weak soil bed was significantly reduced [69].
Table 2.
Application/ Contribution and purpose of Geo-cell unbreakable grit bed
| Ref. No | Application/ Contribution | Purpose |
| [15] | Due to their ease of construction, cost-benefit, sustainability, and efficacy, geo-synthetics have emerged as an attractive engineering material in many applications, including transportation, geotechnical, environmental, coastal, mining, and hydraulics. Regardless of climatic, geographical, or technical variables, geo-synthetics provide the best solution to design and construction difficulties. | Geo-cells, a type of 3D geo-synthetic, are commonly worn to boost the carrying capacity of soft soils. |
| [16] | Geo-cell is a type of base reinforcement made of thermally soldered high-concentration polyethylene tiles or a new polymer alloy. It outperforms other planar geo-synthetic fabrics in terms of performance. Geo-cells are more effective than pre-stressed bases at constrictive built-up substances beneath fixed or repeated dumping. | It is used to strengthen the qualities of the base course as well as to improve the efficiency of both unpaved and paved roads. Geo-synthetic sheets are put at the boundary of sub grade and bottom or inside the base course to get better sub grade structural integrity or afford base course internment. |
| [17] | Under dynamic load, the three-dimensional geo-cell reinforcement outperformed the planar geo-grids. New geo-technical plan is applied to guarantee that structures are built on Earth that can withstand a wide range of loads. | Geo-cell reinforcements are used to fortify the fragile sub grades. The use of geo-synthetics to fortify the earth is one of the most enviable methods under fixed and vibrant pressures. The use of geo-cell mattresses as reinforcement reduced the formation of plastic strain in sub grade soils. |
| [18] | Geo-cell reinforced embankments are frequently subjected to recurring stresses from rail or vehicle traffic. As a result, establishing the authority of obtained design equations requires comparing the activities of geo-cell reinforced culverts under fixed and repeated stress. To better understand the long-term impact of geo-cell reinforced soil, mathematical modeling, which allows imitation of various loading situations and substance activities, can be employed. | Geo-cells are utilized to modify the activities of the earth in order to benefit manufacturing requirements. It decreases the precision with which the load transmission mechanism in a geo-cell is assessed. The addition of a geo-cell at the base of the culvert not only lowers the stress imparted to the sub grade, but it also lessens discrepancy resolution over time. |
| [19] | The geo-cells imbedded in silica grit are tested to see how improvements affect load-deformation response, strength, and stiffness. When subjected to planar strain, conventional web-shaped geo-cells have a low stiffness due to web deformability. As a result, while exposed to malleable stress beside the core flat in examination, ordinary geo-cells may not perform effectively. To address the shortcomings of regular geo-cells, a unique geo-cell, similar to tendoned geo-cells, is produced in this study by inserting slanting members beside the induced tensile tension. This reveals that the diagonally enhanced geo-cells have substantially higher stiffness and ultimate resistance than regular geo-cells. | Geo-cells are utilized as basal support in roadway sub grades, foundation soils, and culverts to boost the structural integrity and diminish total and discrepancy settlements. Geo-cell supported soil embankments are erected over soft soil foundations. Surcharge pressure was applied to the erected embankments at the crest until they failed. The effect of numerous characteristics on the behavior of embankments, such as the stiffness of the geo-grids used to create the geo-cell material, the height and compact size of the geo-cell layer, outline of geo-cell creation, etc. |
| [20] | The anchoring at either geo-cell support leads to rise considerably as the width of the geo-cell mattress increases. As a result, the footing load was efficiently supported, which resulted in less contact force on the sub grade soil and increased performance. To understand the dynamic reaction of reinforced soil domain aroused beneath the machine foundation, the geo-cell was integrated into the soil model and modal analysis was performed. | The geo-cell reinforcement significantly lowered the contact force on backfill earth. The geo-cell soil composite layer acts as a barrier, reducing the downward transfer of excessive vibrations and cyclic stresses. |
| [21] | Under dynamic plate and static loading experiments, the behavior of geo-cell reinforced sandy soil revealed a 40% upgrade in sandy soil structural integrity. Because of the great porosity of the geo-textile bands, water can circulate in flat and perpendicular directions. The inclusion boosts the conflict provided by deviatoric pressure, which is a fine component of overall behavior. Because of the united and limiting result of the enclosed earth substances, perceived cohesiveness increases as a linear function of geo-cell stature. | Geo-cells can help compressed soils with lateral confinement. The geo-cell restricts the rise of radial strain, hence increasing the period of the sample’s reduction phase, which affects the change in pore pressure. By supplying further confining stress for the compressed soil, the geo-cell reinforcement improves the mechanical properties of the grit. |
| [22] | The pressure circulation mechanism of geo-cell resistant soil, the reinforcing competence of the geo-cell as the contour, and the stress shifted among the reinforced earth and the non-reinforced earth are all depicted in a large-scale model box. The most efficient reinforcement form is the coir geo-cell. Its higher performance is due to geo-cells’ ability to confine soil within the walls and distribute pressure exerted to a greater depth. Due to the stiffness of the entire system, the applied stress on the footing is borne by the geo-cell even after the shear failure of the soil. Due to load transmission to deeper depths, a geo-cell mattress with a size equal to the breadth of the footing improved footing performance significantly. | To improve the performance of soft soil, geo-cell reinforcement inhibits lateral movement in filled soil and generates a firm mat for supporting the foundation. Because of its three-dimensional character, geo-cells offer versatile detention to the compressed ground, resulting in an overall raise in the performance of foundation beds. Geo-cells are thought to be cost effective, environmentally beneficial, long lasting, and simple to operate. It may be utilized in all weather situations without requiring extensive upkeep. |
| [23] | The geo-cell reinforcement confines the builtup dirt all around, preventing it from spreading laterally. This resulted in a durable and tough merged construction that repositioned the excess strain applied on the formation over a broader region, minimizing force on the original squashy mud. The load-carrying capability of a geo-cell-reinforced raft is roughly equivalent to that of a heap propel base. | To evaluate the concert of heap propel foundation and raft foundation supported above flat and geo-cell reinforcement geo-cell resistant grit divan, it is necessary to determine the scale of d/b and h/b (wherever h is the height of geo-cell, d is the pocket size of geo-cell as well as b is the width of raft) to gain the most benefit in reinforced grit structural integrity. |
| [24] | The built-up material employed may have an impact on the act of the geo-cell toughened sub grade. As a result, using desecrate resources as built-up in geo-cell reinforced sub grade may be extra helpful, cost-efficient, and ecologically benign. Flexural behaviour is critical to the geo-synthetic use in footpath because it works as a stretchy film entrenched in the footpath, improving pressure allocation and reducing pressure on the earth sub grade. | The combined use of a geo-cell and a planar geo-grid was researched, and it was determined that putting the planar geo-grid at the base of the geo-cell increased act in terms of freight structural integrity. By mobilizing erect solidity and flat haven, the geo-grid ribs in the geo-cell wall efficiently resist footing penetration. |
| [25] | The geo-cell was discovered to transform the EPS geo-foam’s resistive mechanism from unified to unified-abrasion. While the cohesiveness decreased by only 4.5%, the inner abrasion approach of the studied geo-foam enlarged 6 fold owing to the geo-cell’s involvement. Furthermore, confinement to the built-up material caused by the geo-cells, in addition to the abrasion conflict among the geo-cell walls and the compressed substance, is largely responsible for the geo-cell’s enhancing influence, whereas membrane resistance is the most dominant apparatus at better strains. | The composite of geo-foam and geo-cell, geo-cell filled with geo-foam, is explored as an effort to augment the perfunctory act of the EPS geo-foam. The decrease in EPS compressibility can be accredited chiefly to the geo-cell’s side internment. Geo-cell insertion transforms the EPS geo-foam’s behavior from mostly cohesive to cohesive-frictional. |
| [26] | The geo-cell enables to encapsulate of the soil and thus, confined the soil and increases the soil bed performance. There are three reinforcement mechanism of geo-cell reinforced layer which is: confinement outcome, straight up pressure spreading outcome and hammock outcome. | The compaction of the geo-cell built-up material could not be done inside the soil box as compacting directly on top of the grit will disturbed and cause uneven distribution of the relative density. The technique used in this study to achieve the desired DR was by creating a mold, placing the geo-cell and the built-up material inside the mold and compact the built-up in the mold. |
| [27] | The geo-cell was initially inserted and expanded over the compressed earth face during the creation of the geo-cell reinforced bed. The geo-cell mattress was initially filled with the silty grit utilized in the foundation bed research. Standard compaction was used to compact each pocket. The required precautions were taken to avoid cell material distortion and bending during compaction. The % reduction in peak particle velocity (PPV) was used to determine the optimal width and depth of the geo-cell placement for arresting machine-induced vibration. | Geo-cells were discovered to be the most effective among several types of strengthening products in improving the modulus and expandable responsiveness of base beds. Because of the geo-cell reinforcement, the resonance amplitude of the foundation bed was considerably reduced. The addition of the geo-cell improved the quality rate of the groundwork bed. It was measured using the Frequency Improvement Proportion (FIR). It is the proportion of the geo-cell reinforced case’s resonant frequencies to the pre-stressed case’s resonant frequencies. |
| [28] | It analyses if lowering the wall’s slope is highly effective in lowering the wall’s horizontal displacement. In general, oil-contaminated soil has an unenthusiastic impact on partition routine. In general, as the quantity of oil increases, the proportion of development in wall activities owing to a boost in the elevation, length, and number of geo-cell layers decreases. The increase in the proportion of geo-cell length to wall height leads to a reduction in the flat dislocation of gravity walls made with geo-cell. | The positive effect of the geo-cell on soil structural integrity is proportional to relative density, with the improvement in structural integrity attributable to the geo-cell being more noticeable at relative densities above 70%. The sub grade reaction coefficient increases the elastic modulus of geo-cell materials, and the rate of rise in the structural integrity of reinforced soil with geo-cell increases. |
| [29] | The widespread use of geo-cells in practice, particularly in slope compensation, stems primarily from the intensification properties they exhibit in surplus of the casing outcome of flat geo-synthetics. On the ground, where geo-cells are honeycomb-shaped, a 3-geometric replica and examination gives extra accurate impending into the actions of structures unbreakable with them than the commonly used 2D grade constancy examinations that treat the geo-cell layer as an corresponding earth coat. | The bargain of resisting components in resistant structures has a significant impact on their behavior and constancy. It is also important for artificial structures, such as geo-cell unbreakable slopes, where strengthening is done during construction. Consider alternative distribution patterns to get the best strengthening configuration. |
| [30] | Geo-cell has been used for years to improve the concert of geotechnical constructions such as retaining walls, footpaths, subsurface pipes, slopes and foundations. Geo-cells are frequently employed because of their strength, low cost, and simplicity of construction, as well as their improved behavior as compared to planar reinforcing geo-synthetics. Because of the complex behavior of geo-cell soil merged with stresses, there is a lack of a commonly accepted and organized strategy for designing geo-cell reinforced structures. | The span of the geo-cell film may be reduced to the best quantity determined by steadiness studies to decrease costs. Because of the close proximity of the numerous geo-cell layers to the soil facade, the stepwise broadcast of the practically restricted freight from the first to the second and then to the third layer has resulted in a significant decrease in load power under the lowermost reinforcing layer, leads to the breakdown face to be formed mainly by the inclined self-pressure. |
The best choice is offered by the bearing pressure-settlement behavior of the soil beds reinforced with HDPE geo-cells, natural geo-cells, and unreinforced soil beds. With increasing applied pressure, the soil bed reinforced with sisal and jute cells demonstrated a steady increase in settlement. At higher pressure, the settlement of the soil reinforced with HDPE geo-cell increased abruptly. The tensile strength of the geo-cell was found to be higher in the sisal mat than in the jute mat over the HDPE material. In comparison to HDPE geo-cells, soil reinforced with sisal cells may withstand higher stresses at lesser strain [70].
The use of suitable reinforcement improves the structural integrity of the soil in the soil strengthening method. The beginning of geo-synthetics greatly expanded the field of soil reinforcement. Geo-synthetic is an artificial creation made of polymer components that is widely utilized in geotechnical constructions. Many researchers explored the performance of uni-axial, bi-axial, and tri-axial geo-grids as soil back up elements and discovered the influence of whole shape on reinforced soil bed performance.
Circular Footing Performance on Liberal Earth Bed with Chevron Geo-cells
Geo-cells with a chevron pattern composed of polypropylene geo-textile were utilized to support the soil bed. The factors investigated in this part were the geo-cell mattress placement deepness, geo-cell pouch dimension and geo-cell mattress tallness. The act of the resistant bed is evaluated by 2 non-dimensional factors: structural integrity enhancement feature and settling drop factor.
The base layer of RAP-built flexible pavements that experience longitudinal cracking, rutting, surface depressions, and shoulder lowering issues can be reinforced with geo-cells. By using recycled asphalt pavement (RAP) material to replace the old foundation layer, these roads can be restored. The test section’s performance was tracked using topographic survey, load and deformation sensors, and visual inspection techniques. Geo-cells can enable three-dimensional confinement, allowing recycled asphalt pavement components to be used. Because of the presence of bitumen binder, RAP material will have greater permanent deformation than fresh aggregate material.
Performance Upgrading of Ballasted Railway Tracks
Geo-cells could be a low-cost, technically viable option for increasing trail performance. Even if the performance of geo-cells in a series of geotechnical implementations such as shatterproof retaining walls, slopes, culverts and footpaths is well established, its use on railway tracks is still in its early stages. The current chapter looks into the profit of geo-cells in railway lines. The influence of geo-cell reinforcement on track stability metrics has been explored.
Scaled models of the weight coating and tamping units utilizing the discrete element technique were employed for the contrast. Using elastic wave propagation data, laboratory testing was used to assess weight compaction along the sleeper. The settling conflict for reducing procedures was calculated below tremor loading. The results of the testing demonstrate that the side tamping approach resulted in a 5-7% increase in the density of the weight layer beneath the unknown quantity.
The influence of various sub grades on track performance is considered. Geo-grids, wedge-shaped stock, and zones with compressed unknown spacing are evaluated for their utility in improving critical zone recital. According to the result, the sub grade soil has a significant impact on track response on the softer side of the critical zone. As the force and rigidity of the backfill soil grow, the vertical displacement differential among the rigid and mushy sides of a rail changes and lowers considerably.
Performance of Geo-synthetic Reinforced Shallow Foundations
Granular materials such as sand or gravel are commonly used to fill geo-cell pockets. The geo-cell retains and limits the soil by limiting shearing when a load is applied. The composite soil geo-cell matrix functions as a semi-rigid slab, redistributing incoming load with lower intensity onto the underlying sub grade to improve the overall bearing capacity of the foundation system. To improve the overall performance of the geo-cell reinforcement, a layer of planar geo-grid is placed over the soft ground before the geo-cell mattress is placed. This allows for easy construction movement and enhances the overall performance of the geo-cell reinforcement in shallow foundations.
The influence of geo-grid inclusion on the rigid strip shallow foundation structural integrity over grit dunes. A comprehensive chain of settings embracing the plain fill situation is validated by evaluating elements such as first geo-grid back up depth, perpendicular spacing among geo-grid inclusions, and geo-grid expansion relative. To meet the study objectives, a series of finite element analyses are performed to evaluate the examined parameters.
Performance of Flexible Pipelines from Dynamic Surface Loads
The interconnected geo-cells act as a slab, similar to a big pad, spreading the applied weight over a larger area. A geo-cell reinforced soil is stiffer and stronger than an identical soil without geo-cell reinforcement. Because of the existence of geo-grid in the soil, the connection between the settlement and the applied pressure of the reinforced soil is nearly linear until the failure stage. Geo-cell reinforced soil is stiffer and stronger than the same soil without geo-cell reinforcement. Because of the existence of geo-grid in the soil, the connection between the settlement and applied pressure of the reinforced soil is nearly linear until the failure stage [71]. Geo-cell works in two ways: reinforcement and separation. Reinforcement and separation are approaches for improving poor soil with geo-cell, increasing the stiffness and load-carrying capacity of the soil through frictional interaction between the soil and geo-cell material.
A country’s social and economic growth is influenced by well-established road connectivity. Along with establishing road connectivity, it is equally critical to offer high-quality roads. The sub grade soil is primarily responsible for the long-standing structural performance of highways. Footpath construction on black cotton soils can be problematic due to the soil’s poor shear strength and excessive compressibility. Black cotton soils that are moderately to very expansive cover approximately 26% of the geographical area in India. Sub grade soil made from expansive soil is prone to swell-shrink behavior, which can result in uneven road settlings.
Performance of Anchor in Geo-cell Reinforced Grit: Cyclic and Post-Cycling
Progressive abrupt failure can occur under cyclic stress, characterized by cumulative displacement - even at loads much below the static capacity. The assessment of the soil’s reaction to cyclic loading indicates that with rising loading cycles, the loading is ever more transferred to the soil close to the fasten in the pre-stressed scenario. Following the application of cyclic loads, the monotonic post-cycling capacity of both resistant and pre-stressed anchors declines [72].
Aeolian grit is significantly reinforced by geo-cells. On the constructed desert roadway, however, the dynamic act of geo-cell resistant aeolian grit as a superior deposit of roadbed fill has not been considered. A ground test technique is used to revise the vibrant act of geo-cell toughened aeolian grit as a superior roadbed fill.
Earthquake Deformation of the Geo-cell Flexible Reinforced Retaining Wall
The FLAC3D method is used to investigate the breakdown mechanism of geo-cell toughened retaining walls during earthquakes, compare the merits of the geo-cell retaining wall in calculating bend to the geo-grid reinforced retaining wall and pre-stressed retaining wall and investigate the bend of the resistant wall by varying the span of the geo-cell and support the spacing of the geo-cell.
Tire accumulation is a global resource and environmental problem. Tire land filling or cremation releases harmful substances into the surrounding area, posing a major ecological threat to the ecosystem. A great number of studies have proven that waste tires can be utilized in geotechnical engineering, which is an excellent idea for waste tire recycling. So far, researchers have used dynamic tri-axial tests, California load proportion tests, consolidation tests, liberated density tests and expansive force tests to assess the concert of earth combined with waste tires.
The analyzing earthquake influence on soil structure, shake table testing has been widely used in the last few decades. In seismic research, shaking tables are frequently used because they enable structures like embankments to be excited in such a way that they are subjected to circumstances reflective of genuine earthquake ground motion.
Behavior of Geo-cell
Under various drainage circumstances, geo-cells can develop the structural integrity of previous footpaths. The sub grade soil layer, geo-cell complex layer, and pervious concrete slab comprise the geo-cell reinforced footpath model. The load was applied to all models using a circular rigid base plate. The grit material was employed as a sub grade to create the drained performance, and the clay substance was utilized as a sub grade to formulate the un-drained drainage condition.
Reclaimed asphalt footpath (RAP) resources have long been regarded as environmentally friendly alternatives in the asphalt road production. RAP materials’ poor shear force and substantial enduring warp behavior typically bound their submission in path bases. This study’s objective was to look at the effectiveness of 3D geo-synthetic reinforcements in strengthening the resilience and reducing enduring warp by stabilizing RAP bases.
Behavior of a Conjoined Footings on Grits Encased by Geo-cell Reinforcement
The influence of footing spacing on structural stability and settlement was investigated by maintaining optimal geometry and position for cellular back up entrenched in the soil. It illustrates that, as compared to a single isolated footing on a pre-stressed bed, the joined consequence of strengthening and foothold intrusion can develop load hauling capability by more than 300% and get better resolution more than 60%. When footings are spaced by more than three times their diameter apart, the interference effect is greatly decreased, and each footing nearly functions as a solitary secluded footing.
Geo-cell Reinforced Strip Footings’ Slope Behavior
The geo-cell reinforced strip footing slope behavior investigates the structural integrity and dislocation behavior of strip footings near pre-stressed and geo-cell resistant grit slopes. The consequences of many contributing variables are discussed, including slope angle, depth of geo-cell embedment, geo-cell pouch size, and double layer reinforcement collection. It shows that using a single geo-cell layer with a deepness to footing breadth proportion of 0.1 results in the maximum structural integrity and the lowest settling proportion.
Method for estimating upright stresses propagated to the base of backfill at the interface on the subgrade and surface settlements of the geo-cell resistant soil. Based on the idea of corresponding compactness, which is the theory of flexibility for encrusted systems, a general equation for evaluating settlements in a 2 coated system consists of geo-cell resistant earth layer above the sub grade was projected.
Behavior of Abutment Wall
The use of geo-synthetic resistant soil structures in overpass abutment walls rather than piling foundations reduces outlay and bridge bump. It defines the cause of geo-cell reinforcement on backfill soil carrying capacity, horizontal displacement and footing settlement of the GRS abutment wall’s wall facing [73].
The study investigates the task of linked section walls in changing the behavior of a meta-kaolin geo-polymer wall type abutment when subjected to all of the stresses encountered on a short-span bridge. Multiple models are used to study the behavior of the meta-kaolin geo-polymer wall-type abutment, which varies basic elements such as wing wall height, wall length, quantity of lanes on the overpass, and kind of live load on the overpass. All of the situations yield several outcomes in the variety of twisting moments, displaying some really unusual behavior of the wing and abutment walls.
Behavior of Vibration Bed using Heritable Encoding and Multivariate Adaptive Failure Spline Models
The use of fast emerging machine learning techniques (MLTs) to predict the shaking of a geo-cell reinforced soil bed. Two appliance fact algorithms are utilized for PPV prediction: multivariate adaptive failure splines and hereditary encoding. The PPV deviation was calculated by changing the trial circumstances, which comprised of active freight modulus of built-up substance, footing embedment and breadth and deepness of geo-cell mattress installation [74].
Behavior of Builtup Materials on Geo-cell Reinforced Soil Bed Vibration Isolation
The shear modulus of the foundation bed increased by 160% when aggregate builtup was present. Peak particle velocity was reduced by 57% and peak hastening was reduced by 48%. Additionally, the value of the mass spring dashpot (MSD) similarity in predicting the dislocation response and regularity of different armored conditions was examined. The presence of geo-cell reinforcement resulted in a significant upgrading in the damping proportion of the foundation bed, according to the analytical investigation.
Although, Aeolian soil is copious in dry regions, it is not fit for use as highway upper road bed filler. In general, gravelly soil is mined as higher roadbed fill throughout the desert, resulting in significant technical costs for desert road development. Geo-cells help to strengthen Aeolian grit. On the constructed desert roadway, however, the active concert of geo-cell reinforced aeolian grit as a superior layer of roadbed fill has not been calculated. The dynamic performance of geo-cell reinforced aeolian grit as an upper roadbed fill is investigated using a field test method.
Behavior of Contact Pressure Distribution
Due to increased load, high contact stresses in the foundation soil produce strain, instability, and massive settlements. Geo-cell reinforcement is now commonly employed to improve the performance of foundation beds. The pressure distribution on subgrade soil in geo-cell reinforced foundation beds is examined using model experiments and numerical analysis.
The best geo-cell and jute fiber reinforcing parameters are employed to improve the performance of a circular footing resting on expanding soil. The main source of this reduction is the friction created between soil particles and the geo-cell pocket walls during the upward movement of soil during swelling in geo-cell reinforced soil samples. The magnitude of these resistive forces will be greater in the event of a geo-cell constructed with a small pocket size versus a larger pocket size. In geo-cell reinforced expansive soil with constant fiber content, swelling pressure and swelling potential decreased as fiber length increased.
Behavior of Structural integrity and Relative Density
Geo-cell reinforcement improves the load-deformation actions of thin foundations. A sequence of instrumented large-scale plate freight experiments was carried out to determine such enhancement and associated them with the relative density (Dr) of geo-cell resistant soil. Various properties of strain-stress behavior, firmness, load dispersion and structural integrity are discussed.
The presentation of the state-of-the-art geometric evolution of geo-cells in the circumstance of transportation geotechnical engineering, as well as the properties of geo-cell profile, mass, solidity, and surface coarseness, as well as properties of built-up and resident soils on geo-cell recital, is compiled from the text to gain vital mean insights. The submission of geo-cells in footpaths is elaborated in.
High Density Polyethylene Geo-cell Limit State and Creep Behavior
The amount of bend is determined by the freight functioned to the geo-cell and the parts of the geo-cell on which the load operates. The durability of all geo-cell sections dropped as the displacement rate increased. The magnitude of the load influenced the crawl performance of the substance and altered the instance gap between the commencement of loading and the split.
Behavior of Different Built-up Materials
The insufficient improvement in geo-cell reinforced performance in the case of unified soil as the built-up material could be accredited to its cohesion and low modulus. According to metric studies, geo-cells have a considerable impact on reinforced performance when the built-up material is foundation soil with a greater modulus and inferior solidity.
Mechanical Behavior of Geo-cell Strips
Geo-cells are commonly employed in the treatment of substandard road beds because they may constrain soil laterally and increase soil stability. An alteration in warmth can affect the mechanical behavior of geo-cells made of various materials in cold region engineering. Table 3 shows the advantages and disadvantages of geo-cell reinforced grit bed.
Table 3.
Advantages and disadvantages of geo-cell
| Ref.no | Advantages | Disadvantages |
| [67] | Geo-cell material plays a main role in the grouping of reduced layer thickness and improved footpath longevity in terms of million average hinge and soil carrying capacity. | Geo-synthetics are week in compression but strong in tension. In pre-stressed footpath due to presence of aggregate abrasion or movement takes place so this causes loss in strength and increases maintenance. |
| [68] | If the geo-cell is inserted in the backfill with an adequate compaction technique, it can play a useful function in improving the backfill structural integrity. | Soil grains, geo-cell characteristics and exterior loading geometries contain a straight effect on the reaction of geo-cell resistant beds. |
Influencing Parameters on the Vibration Isolation Efficacy
The deepness of placement of the geo-cell beneath the footing, the breadth of the geo-cell, the deepness of embedment of the footing, the vibrant strength level of the excitation, and the built-up materials are all explored parameters. Different vibration indicators, such as peak particle velocity, displacement amplitude and peak acceleration were investigated to better understand the vibration isolation efficiency. The strengthening soil bed with geo-cell was discovered to be an effective method for controlling vibration characteristics. Vibration parameters in the geo-cell toughened scenario were found to be reduced as footing embedment and built-up material modulus amplified. After that, the shuddering parametric quantities of the pre-stressed and geo-cell resistant cases were augmented clearly due to the rise in active excitation. The various properties of grit, geo-cell and geo-textile used in arithmetical modeling are mentioned in Table 4.
Table 4.
Parametric quantities of grit, geo-cell and geo-textile
Conclusion
This review has provided an in-depth exploration of geo-cell reinforced systems and their diverse applications in geotechnical engineering, specifically in soil stabilization, road construction, and foundation support. The studies analyzed in this paper highlight the significant benefits of geo-cells, including enhanced load distribution, reduced settlement, improved structural integrity, and better performance under dynamic loading conditions. By using geo-cells as a reinforcement technique, infrastructure longevity, and sustainability are enhanced in addition to the mechanical qualities of the soil. Despite these promising findings, several critical limitations in the current body of research warrant further scrutiny. First, while many studies have demonstrated the effectiveness of geo-cells in controlled environments, there is a noticeable gap in large-scale, real-world applications. The behavior of geo-cell reinforced systems in varying environmental conditions, such as extreme weather, fluctuating moisture content, and diverse soil compositions, is not sufficiently addressed. The sensitivity of geo-cell performance to these factors could significantly affect the practical deployment of geo-cells in different geographical regions. Moreover, the optimization of geo-cell design parameters remains an underexplored area. Most studies emphasize the effects of parameters like geo-cell size, shape, and embedment depth on performance; however, these results often lack universal applicability due to regional soil variations and site-specific conditions. There is a critical need for more detailed parametric studies that account for these regional differences and provide more context-specific guidelines for the design of geo-cell systems. Additionally, while numerical modeling has proven valuable in understanding geo-cell behavior, the over-reliance on simplified models with assumptions of idealized conditions limits the accuracy and applicability of these findings to complex, real-world scenarios. Another significant gap lies in the long-term durability and cyclic loading effects on geo-cell systems. Although many studies report positive short-term improvements in soil behavior, the long-term performance of geo-cells, particularly under repeated dynamic loads, remains largely unexplored. The degradation of geo-cell materials over time, as well as the potential changes in soil-geo-cell interaction under prolonged stress, is an area that requires more comprehensive investigation. Without long-term studies, the sustainability of geo-cell reinforced systems in critical infrastructure projects cannot be fully confirmed. The environmental footprint of geo-cell materials, especially in the case of synthetic products, requires a more thorough assessment. Alternative, environmentally friendly geo-cell materials, such as biodegradable or recycled components, could offer a more sustainable solution and should be investigated. In terms of future research, several key directions can be identified. Firstly, further studies should focus on the integration of geo-cells with other reinforcement techniques, such as geogrids or geotextiles, to improve the system’s overall performance. Additionally, the incorporation of innovative materials, such as recycled waste products (e.g., rubber or plastic), could provide both cost and environmental benefits, thus promoting the sustainable use of geo-cell systems. Another promising avenue for future studies is the use of smart technologies in geo-cell reinforced systems. The incorporation of sensors or monitoring systems could provide real-time data on soil behavior, allowing for adaptive design adjustments and proactive maintenance of geo-cell structures. Furthermore, the combination of machine learning or artificial intelligence with geotechnical modeling could enable the development of more accurate and efficient predictive models for geo-cell performance, taking into account the complex interactions between soil, geo-cell materials, and environmental factors. In conclusion, while geo-cell reinforcement technology offers promising solutions to many geotechnical challenges, several critical questions remain unanswered. Addressing the limitations identified in this review such as the need for more comprehensive long-term studies, large-scale field trials, and optimized design guidelines will be essential for advancing the technology and ensuring its effectiveness in real-world applications. Through continued research and innovation, geo-cell systems have the potential to become a cornerstone of sustainable and resilient infrastructure development worldwide.
